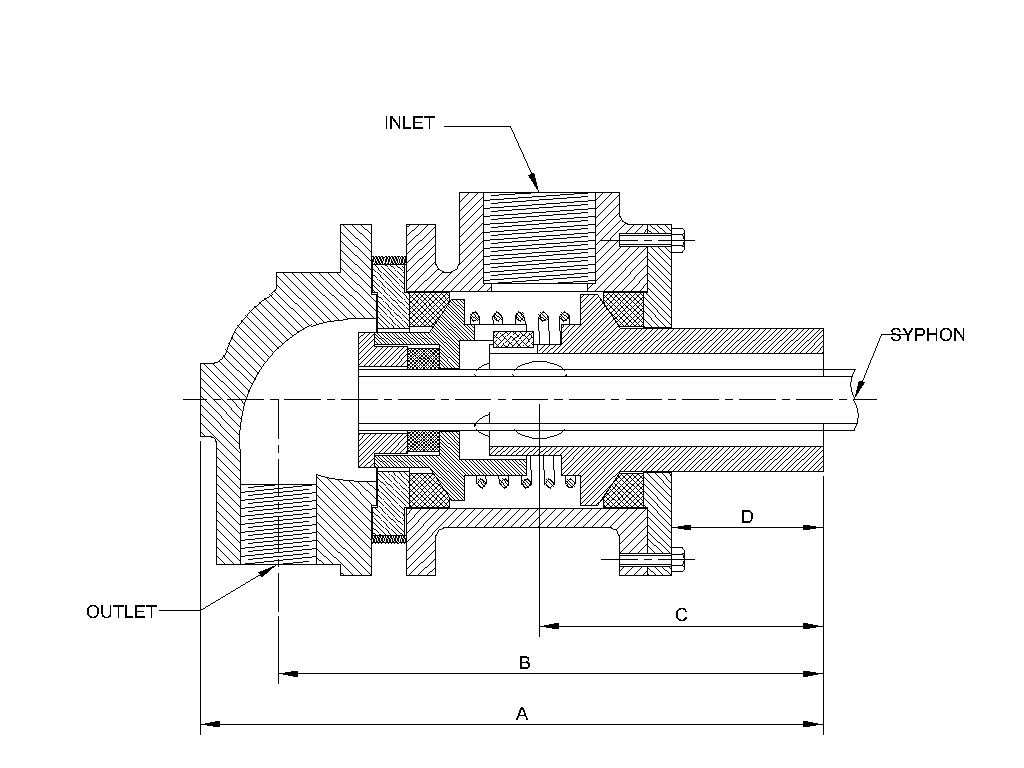

SIZE |
INLET |
OUTLET |
SYPHON |
A |
B |
C |
D |
|
2" |
1 1/2" |
1 1/4" |
3/4" or 1" |
369 |
327 |
181 |
91 |
|
2 1/2" |
2" |
1 1/2" |
1" |
363 |
321 |
175 |
85 |
|
3" |
2 1/2" |
1 1/2" |
1" or 1 1/4" |
390 |
340 |
180 |
95 |
|
6" |
4" |
3" |
2 1/2" |
666 |
600 |
333 |
169 |
| TECHNICAL SPECIFICATION | |
|---|---|
| SIZE | 1/2″ to 7 1/2″ |
| PRESSURE | 0.5 to 12 barg |
| TEMPERATURE | 100º to 300º C |
| SPEED | Up to 150 TO 700MPM (200 RPM) |
| MEDIA | Steam |

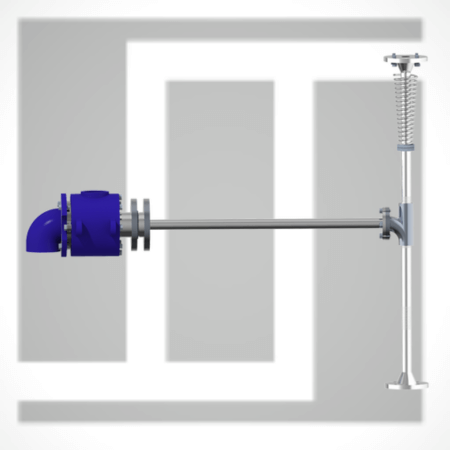

Lnar Type Rotary Joint Is Mostly Intended For Machines With High Speeds.
Alignment is most necessary when we want to install this type of rotary joint. As there is no guide in this type of rotary joint, the friction and wear are less compared with another rotating type of rotary joint.
